OKM Fusion Professional Plus 3D Metal Detector with Live Scan Detection MPN:3937
Metal Detection and 3D Ground ScannerĀ
TheĀ metal detector and 3D ground scanner FusionĀ supports treasure hunters, gold seekers, adventurers, and archaeologists to discover lost treasures, buried artifacts, hidden places, and other historical items.
The advanced versionĀ Professional PlusĀ can be used in a vertical and horizontal orientation and supports graphical 3D measurements, acoustic magnetic field measurements, and instant live images.
The versionĀ Fusion Professional PlusĀ is perfect for advanced users who need more operating features.
Ā
OKM Fusion Professional Plus Features:
- Compact:Ā Detector for vertical and horizontal orientation - supporting graphical 3D measurements, acoustic magnetic field measurements, and instant live images
- Depth:Ā Customers found objects to 21 m (69 ft) deep
- Use Cases:Ā Treasure hunting, cavity detection
- Operating Modes:Ā Ground Scan, Live Sound (Magnetometer), Live Stream
- Detectable Objects:Ā Treasure chests, cavities, tunnels
OKM Fusion Professional Plus Use Cases:
- Archaeology
- Treasure Hunting
- Cavity Detection
- Militaria Detection
- Forensics
- Agriculture
- Public Services
- Explosive Ordnance Disposal Services
- OKM Search Services
Ā
OKM Fusion Professional Plus Package Includes:
- 1x User's manual
- 1x Control unit
- 1x Software Visualizer 3D Studio Professional Edition
- 1x Waterproof and shock-resistant Pelican case

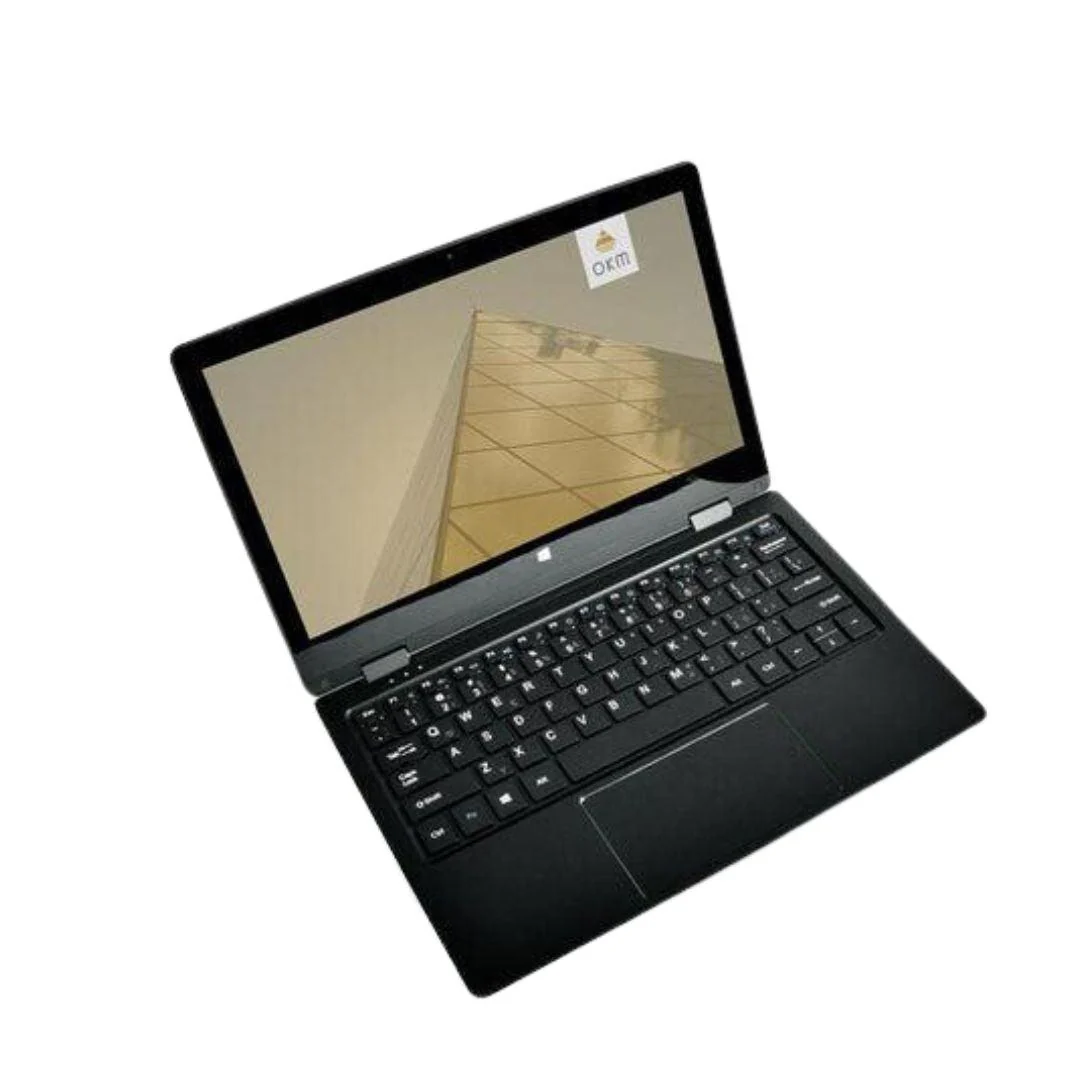

- 1x Windows Notebook

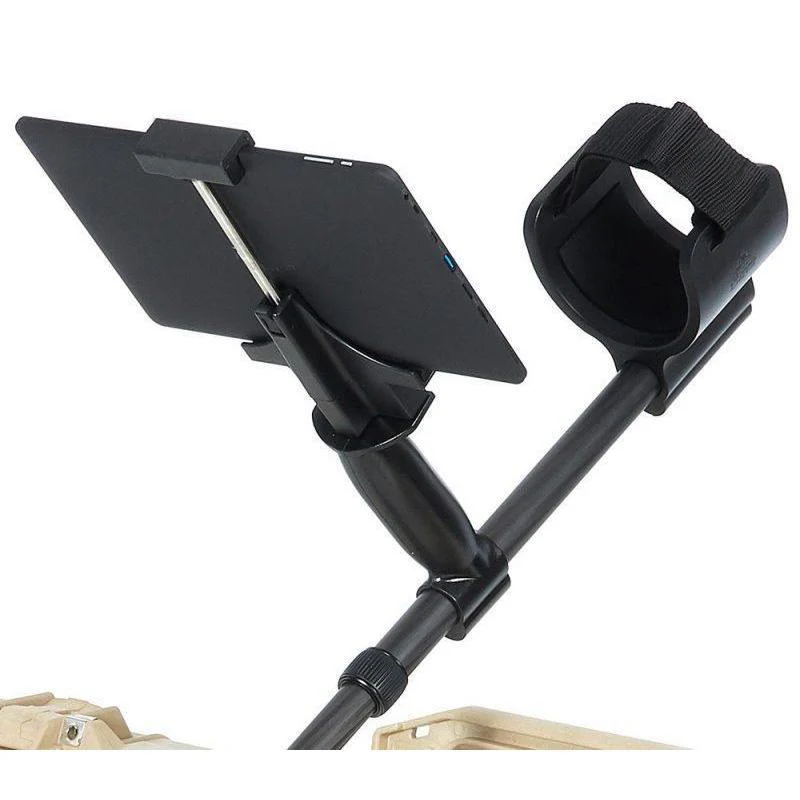

- 1x Notebook mount
- 1x Telescopic rod assembly

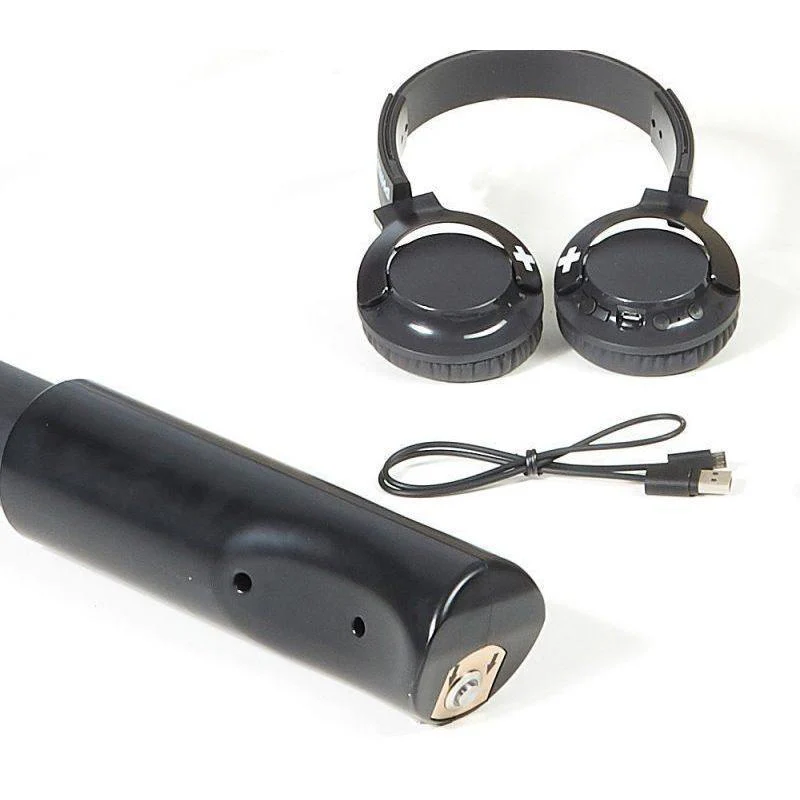

- 1x Bluetooth Headphones

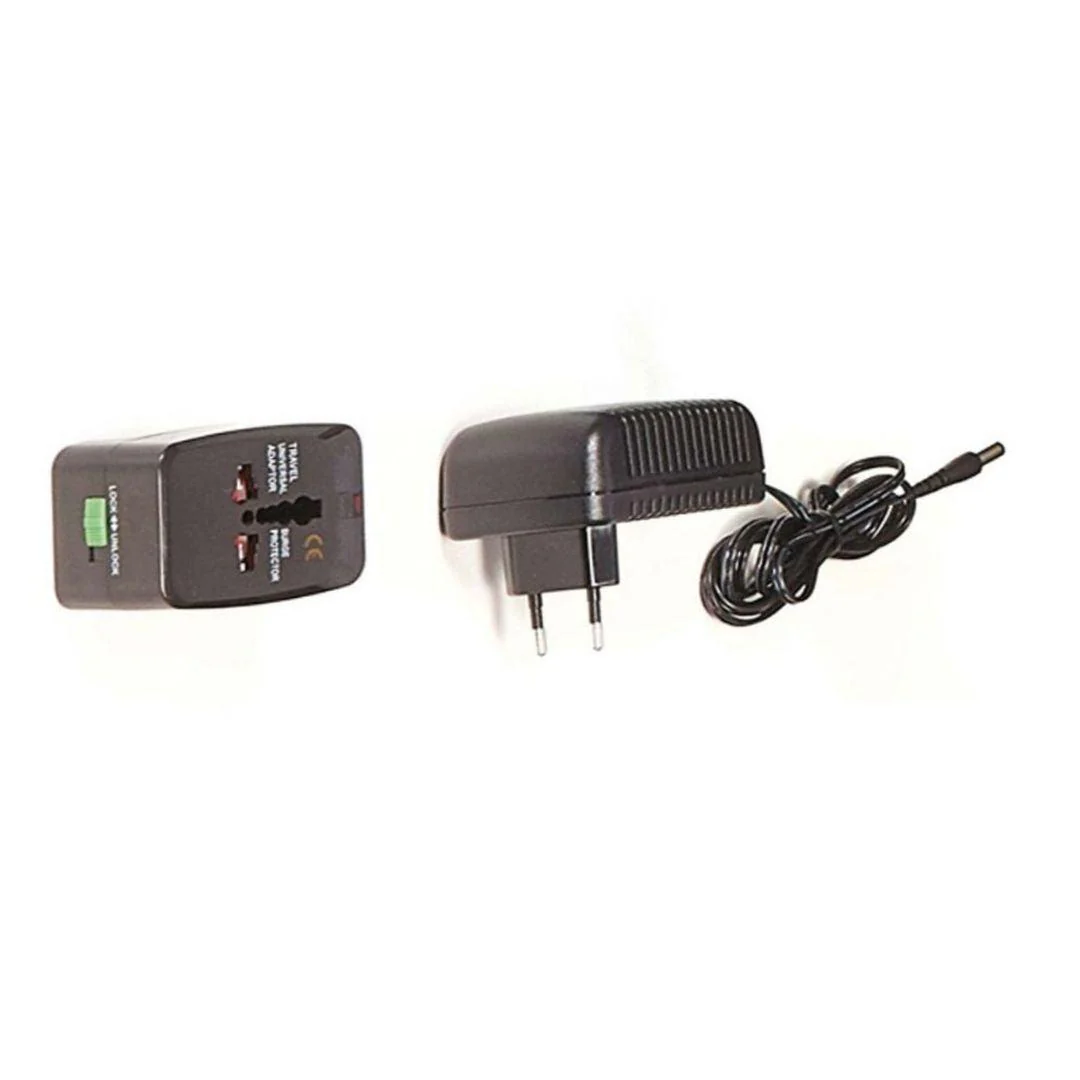

- 1x Charger for control unit
- 1x Travel Adapter
Ā
OKM Fusion Variants:
- OKM Fusion Ultra Light - Click Here
- OKM Fusion Light - Click Here
- OKM Fusion Professional - Click Here
- OKM Fusion Professional Plus - Click Here
- Windows Tablet PCĀ - Click Here
Ā
Special Features of the OKM Professional Plus
- 3D Visualization
- 3D Ground Scan
- SRIS Search Coil
- Live Stream
- GST / EMSR
- Height Adjustment
- Color Display / Touchscreen
- Wireless Technology
- Multilingual Operation
- Rechargeable High-Capacity Battery
Ā
Operating The OKM Fusion Metal Detector
The advanced professional plus version can be used inĀ aĀ vertical and horizontal orientationĀ and supports the following operating modes:
-
Ground Scan
Conduct a graphical 3d measurement for detailed analysis on a computer. -
Live Sound
Process an acoustical magnetic field measurement to detect ferrous metals. -
Live Scan (Multi-Sensor, Ultrasound)
Process an instant live image while walking the scan field.
OKM Fusion Professional Plus:Ā The Professional Plus version of OKM Fusion can be used in vertical (Live Sound, Ground Scan, Live Scan) and horizontal (Ground Scan, Live Scan) orientation.
Ā
Utilizing The SRIS Search Coil To Locate Shallow Metals
One of the new detection features is theĀ SRIS search coilĀ that can be used to locate short-range metallic objects. This coil can be activated individually by the operator while setting up the operating modes Live Sound, Ground Scan, and Live Scan (Ultrasound).
TheĀ SRIS search coilĀ can be very useful to pinpoint targets while digging. It is easy to detect the general position of a buried object with the OKM 3D ground scanner and metal detector OKM Fusion.

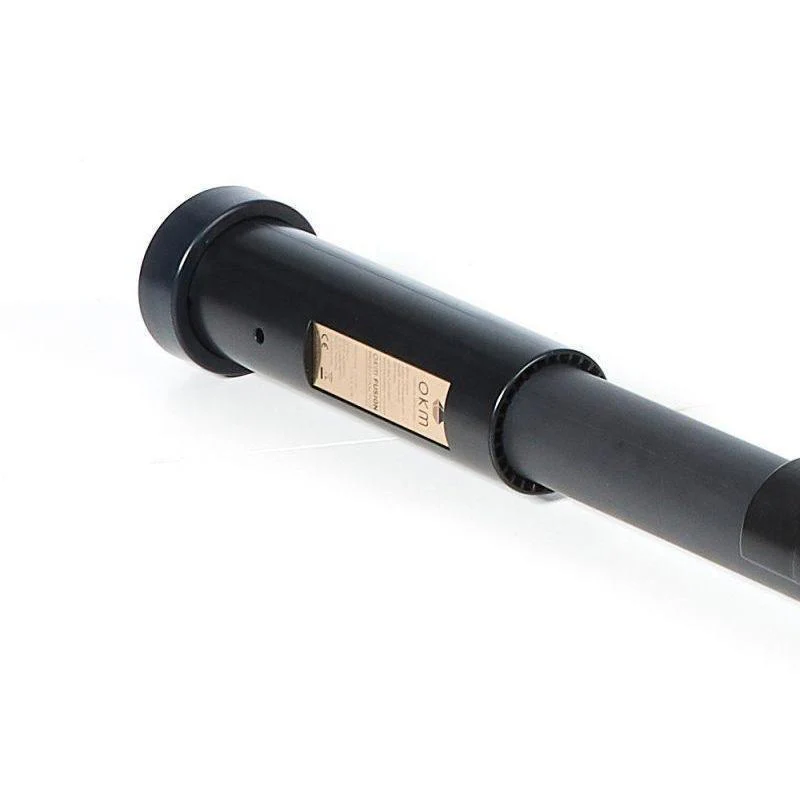

OKM Fusion with SRIS search coil:Ā Mounted at the end of OKM's Fusion is the SRIS search coil, that can be used as a pinpointer for small shallow targets.
When you start digging it can be really hard to exactly match the correct spots of hidden items afterward. By checking the excavated material with activatedĀ SRIS search coilĀ you wonāt miss any small object like:
- wedding bands and engagement rings
- earrings, brooches, bracelets, and necklace
- coins, buttons, badges, and pins
3D Visualization Of Underground Treasures
While scanning an unknown area and recording the measure values, theĀ Visualizer 3D SoftwareĀ can immediately analyze and visualize this information to display a color-coded 3d graphic of hidden objects and structures. Thus you will literally āseeā all buried treasures, gold objects, archaeological artifacts, and any other hidden objects before digging.
Additionally, you can determine the size, position, and depth of your detected items. So you know where to dig and how deep to dig to find your objects of interest.
3D Ground Scan:Ā With a 3d ground scan you will conduct a complete measurement and scan a specific area to see buried objects.
Live Scan (Ultrasound):Ā In this special view of the Live Scan operating mode you are able to see a symbolized ultrasound image of hidden objects.
The OKM Fusion metal detector and 3D ground scanner is available in two versions:Ā ProfessionalĀ (without telescopic rod assembly) andĀ Professional PlusĀ (all accessories and complete functionality).
Specifications of the OKM Professional Plus
Computer Minimum Requirements
- CD-ROM drive:Ā minimum 4x
- Interface (Data transmission):Ā USB
- Free disk space:Ā minimum 50 MB
- Working memory (RAM):Ā minimum of 256 MB
- Graphics card:Ā minimum 128 MB, OpenGL-compatible
- Operating system:Ā Windows Vista, Windows 7, Windows 8, Windows 10
Data Transmission
- Technology:Ā Bluetooth
- Frequency:Ā 2.4 ā 2.4835 GHz
- Maximum Transfer Rate:Ā 1 Mbps
- Receiving Sensitivity:Ā ā85 dBm
- Maximum Range:Ā approx. 10 m
Control Unit
- Dimensions (H x W x D):Ā 950 mm, 65 / 80 mm
- Weight:Ā approx. 1 kg
- Processor / Main CPU:Ā Cortex M3, 32 MHz
- Processor / Slave CPU:Ā Cortex M0, 24 MHz
- Sample rate:Ā 1024 values / second
- Measurement resolution:Ā 16 bit
- Operating temperature:Ā ā10Ā°C ā 60Ā°C
- Storage temperature:Ā ā20Ā°C ā 70Ā°C
- Audio:Ā Bluetooth Headphones
- Waterproof:Ā No
- Sensor technology / Coil technology:Ā SCMI-15-D / SRIS-18K
- Operating time:Ā approx. 3 hours (delivered power supply, full charged battery, 25Ā°C)
- Air humidity:Ā 5% ā 75%
- Protection Type:Ā IP40
- Input (for Charger):Ā 19 V DC / 3.16 A
